Power resistor and load bank manufacturer. Founded in 2004, 6,000 m² production base in Shenzhen. Braking resistors for VFDs, high-voltage resistors, water-cooled resistors, adjustable rheostats, AC/DC load banks. 20,000+ load banks delivered, 4,000+ customers in 56 countries. 20+ patents, ISO 9001 and IATF 16949 certified.
Electronics
ASZ/HASZ Aluminium-Housed Resistors

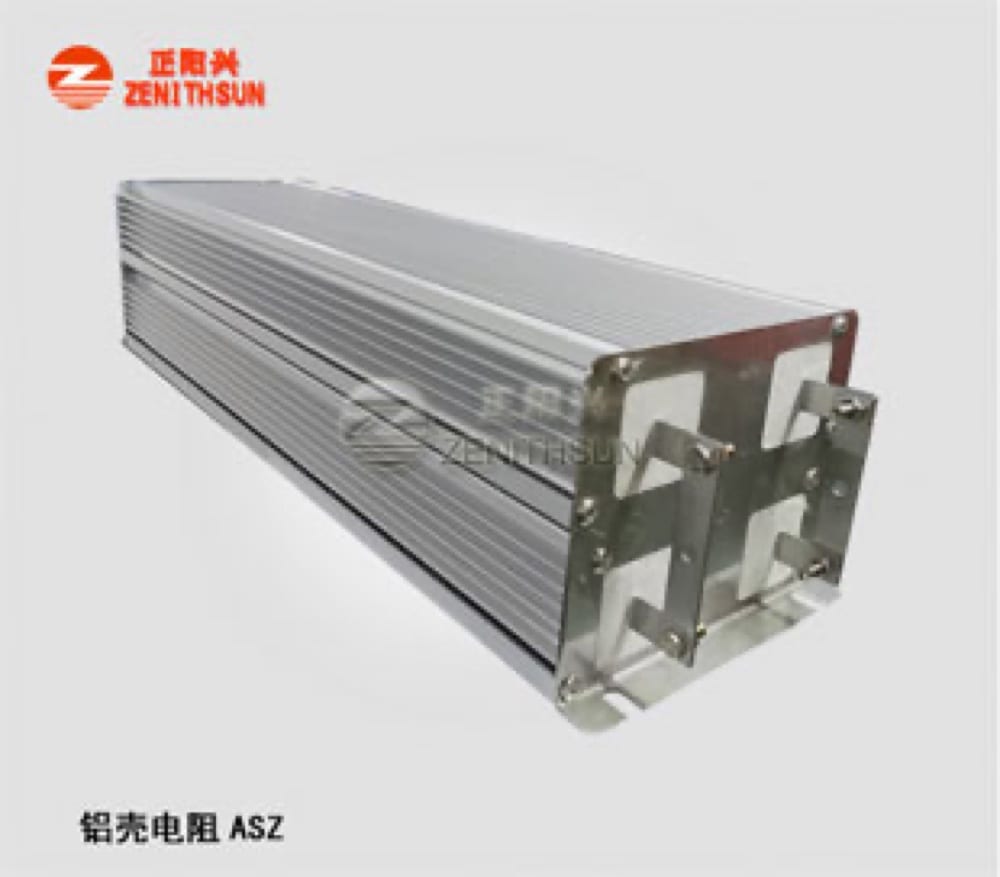

Wirewound resistors in an anodized 6063 aluminum housing: the alloy-wire element on a heat-resistant insulating former is potted with non-flammable compound that protects it from vibration and dust. ASZ range 40–800 W (housings 4020/4026, 6030/6038) and the high-power HASZ group 1–30 kW (housings 7045, 50107, 12840, 15061, 17565, 175145, 175220). Overload 10× rated power for 5 s and 25× for 1 s, dielectric withstand 1–7 kV AC. Options: built-in or external thermal switch, non-inductive winding, flying leads or metal terminals. For continuous full-load duty, select a resistor rated at 2–3× the load power.
- Power range
- ASZ: 40–800 W; HASZ: 1–30 kW
- Resistance range
- 0.1 Ω – 22 kΩ (depending on size)
- Tolerance
- ±1 %, ±2 %, ±5 % (F, G, J)
- TCR
- ±100…±400 ppm/°C
- Short-time overload
- 5× rated — 10 s; 10× — 5 s; 25× — 1 s
- Insulation
- 1–7 kV AC, 60 s; insulation resistance 50–1,000 MΩ (1,000 V DC)
- Housing
- 6063 aluminum, anodized; flat or heatsink mounting
- Options
- thermal switch; non-inductive winding (N); flying leads or metal terminals
High-Power Wirewound Resistors on Ceramic Tube

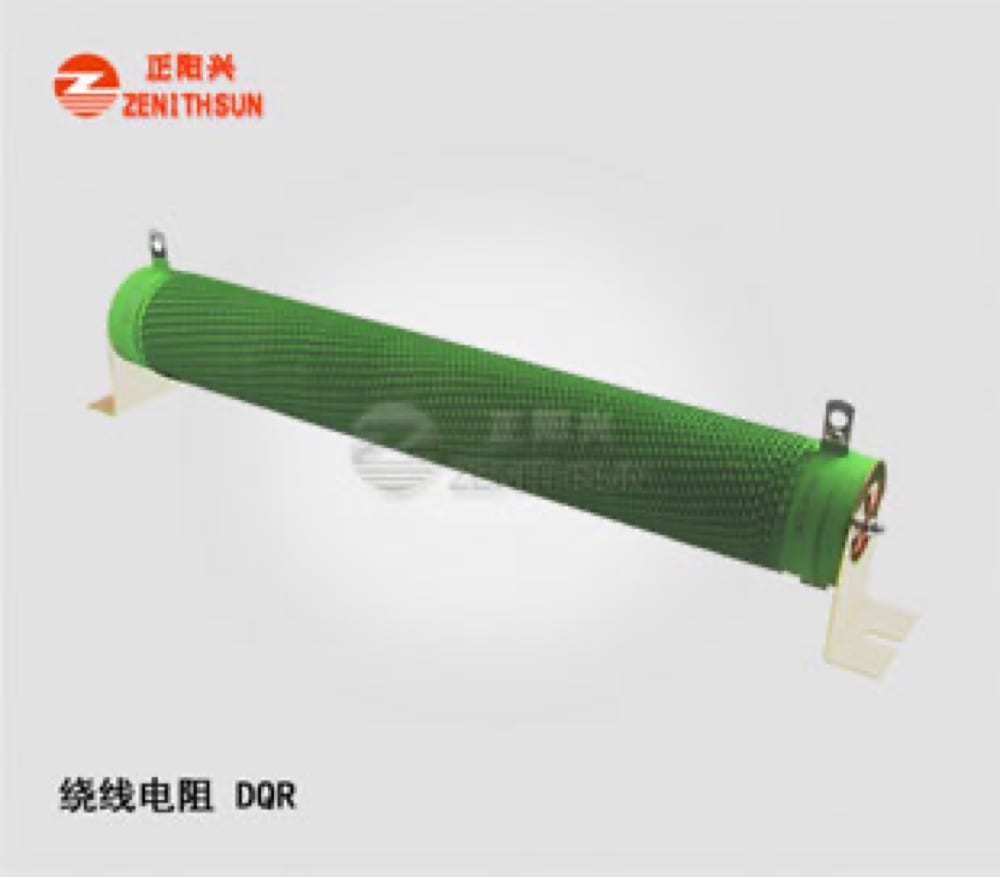

High-power wirewound resistors on a ceramic tube: chromium-alloy winding under a non-flammable insulating, heat-dissipating coating baked at several temperatures. DDR/DNR use wire winding, DQR/DQN a corrugated ribbon, DSR has a movable tap for adjustment; non-inductive versions on request. Power 15 W – 20 kW, resistance 0.5 Ω – 68 kΩ, overload 10× rated power for 5 s and 25× for 1 s, dielectric withstand 1–10 kV AC. One resistor can carry several taps; the series is the building block of braking resistor banks and load banks.
- Series
- DDR/DNR (wire), DQR/DQN (corrugated ribbon), DSR (adjustable); non-inductive on request
- Power range
- 15 W – 20 kW
- Resistance range
- 0.5 Ω – 68 kΩ (depending on power)
- Tolerance
- ±1 %, ±2 %, ±5 %, ±10 % (F, G, J, K)
- TCR
- ±200…±400 ppm/°C
- Short-time overload
- 5× rated — 10 s; 10× — 5 s; 25× — 1 s
- Insulation
- 1–10 kV AC, 60 s; insulation resistance 50–1,000 MΩ
- Construction
- ceramic tube, chromium-alloy winding, non-flammable coating; tab terminals for bolt or wire connection
High-Voltage Thick-Film Resistors
Non-inductive thick film resistors: ruthenium paste fired onto 95–96 % Al₂O₃ ceramic. Cylindrical RI80 (RIZ, RIP, RIT, RHP and RTF precision dividers) and flat RI82/RF82 cover 0.25–300 W, 10 Ω – 1 GΩ, maximum voltage up to 80 kV (RHP 300 W), tolerance down to ±0.1 % for RIT and RTF, TCR from ±50 ppm/°C; best results when submerged in dielectric oil or potted in epoxy. ZMP 120–800 W are flat power modules for heatsink mounting (250–800 W on a water-cooled heatsink, rated at 85 °C case): 0.5 Ω – 1 MΩ, insulation 6–10 kV DC.
- Series
- RI80 (RIZ, RIP, RIT, RHP, RTF), RI82/RF82, ZMP
- Power range
- RI80/RI82: 0.25–300 W; ZMP: 120–800 W (on heatsink)
- Resistance range
- RI80/RI82: 10 Ω – 1 GΩ; ZMP: 0.5 Ω – 1 MΩ
- Maximum voltage
- RI82 up to 35 kV, RIZ up to 48 kV, RHP up to 80 kV; ZMP 250–800 W insulation 6–10 kV DC
- Tolerance
- ±1…±10 % (F–K); RIT and RTF down to ±0.1 %
- TCR
- RI80: ±50…±1,000 ppm/°C; ZMP: ±50…±260 ppm/°C
- RTF dividers
- 3–50 W, 10 kΩ – 500 MΩ, dividing ratio 1:1000 and 1:4000
- Technology
- ruthenium thick film on 95–96 % Al₂O₃ ceramic, non-inductive
Water Cooled Resistors

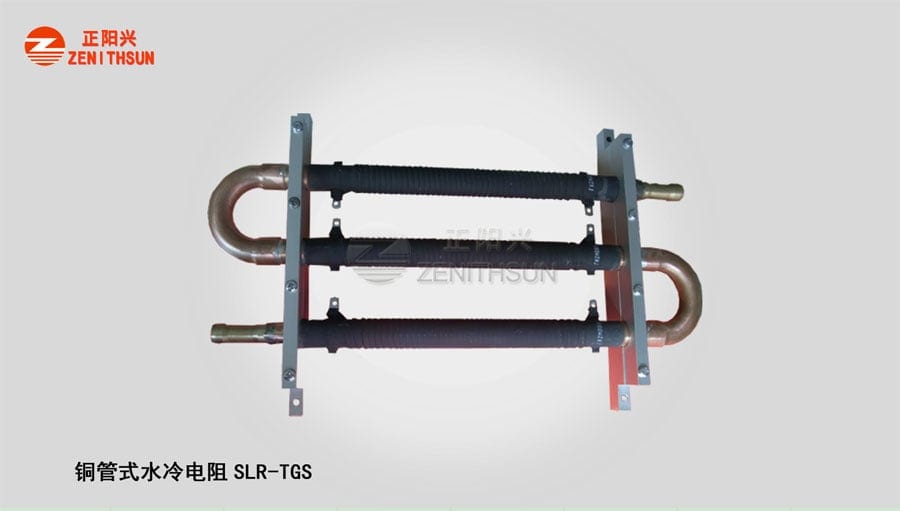

Wirewound resistors with flow-through water cooling: precision alloy winding on a red-copper base, every unit 100 % water-pressure tested for tightness. They run on ordinary tap water, distilled water or other liquid — no costly deionized water required; outlet water 40–60 °C. Versions: SLR-TG copper tube (TG1, TGU, TGS, TGM — 100 W – 10 kW), SLR-ALB aluminum housed (1–10 kW) and SLR-BXG stainless steel. Resistance 0.1 Ω – 20 kΩ, insulation 2.5–6 kV AC. Water must be supplied before power is applied.
- Versions
- SLR-TG (copper tube: TG1, TGU, TGS, TGM, TGUK), SLR-ALB (aluminum housed), SLR-BXG (stainless steel)
- Power range
- SLR-TG: 100 W – 10 kW; SLR-ALB: 1–10 kW
- Resistance range
- 0.1 Ω – 20 kΩ (SLR-TGUK: 2.2–820 Ω)
- Tolerance
- ±1 %, ±2 %, ±5 %, ±10 % (F, G, J, K)
- TCR
- ±100…±260 ppm/°C
- Insulation
- SLR-TG: 2.5–6 kV AC, 60 s; SLR-ALB: 2–7 kV DC, 60 s; insulation resistance 50–1,000 MΩ
- Cooling
- flowing tap or distilled water, or other liquid; outlet water 40–60 °C
Adjustable Resistors & Rheostats

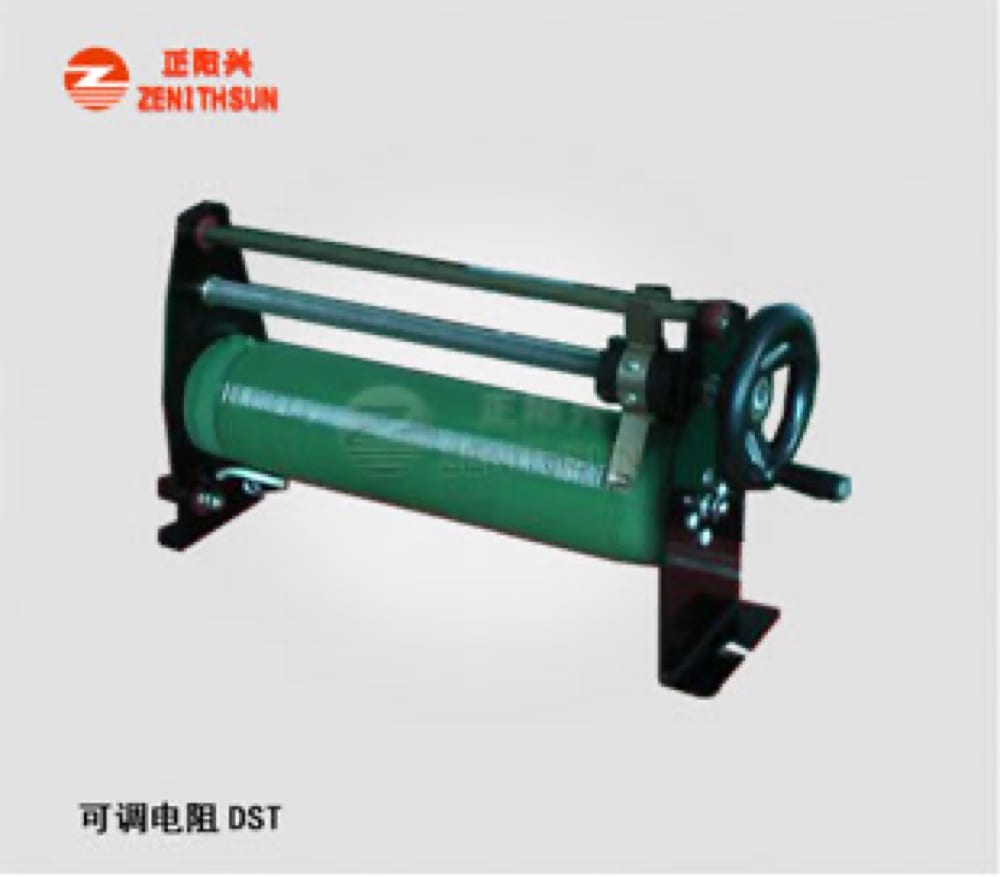

Variable wirewound resistors with continuous adjustment. DST (100 W – 2 kW) and DSY (800 W – 20 kW) are tubular rheostats: chromium-alloy wire on a ceramic tube under a non-flammable coating, with a slider running along the winding; temperature control and a digital scale are available on request. BC1 (12.5–500 W) are tray rheostats: winding on a C-shaped ceramic ring, carbon brush on a rotating shaft, up to six units stacked to 3 kW. Resistance 0.5 Ω – 15 kΩ, tolerance ±5 or ±10 %. DSTB/DSYB adjustable load banks up to 60 kW are built on DST/DSY.
- Series
- DST, DSY (tubular slide type), BC1 (rotary tray type)
- Power range
- DST: 100 W – 2 kW; DSY: 800 W – 20 kW; BC1: 12.5–500 W, stacks up to 3 kW (6 × 500 W)
- Resistance range
- DST/DSY: 1 Ω – 15 kΩ; BC1: 0.5 Ω – 5.1 kΩ
- Tolerance
- ±5 %, ±10 % (J, K)
- TCR
- ±200…±400 ppm/°C
- Adjustment
- continuous: slider along the tube (DST/DSY), rotating shaft with carbon brush (BC1)
- Options
- temperature control and digital scale (DST/DSY); DSTB/DSYB adjustable load banks 100 W – 60 kW
AC Load Banks

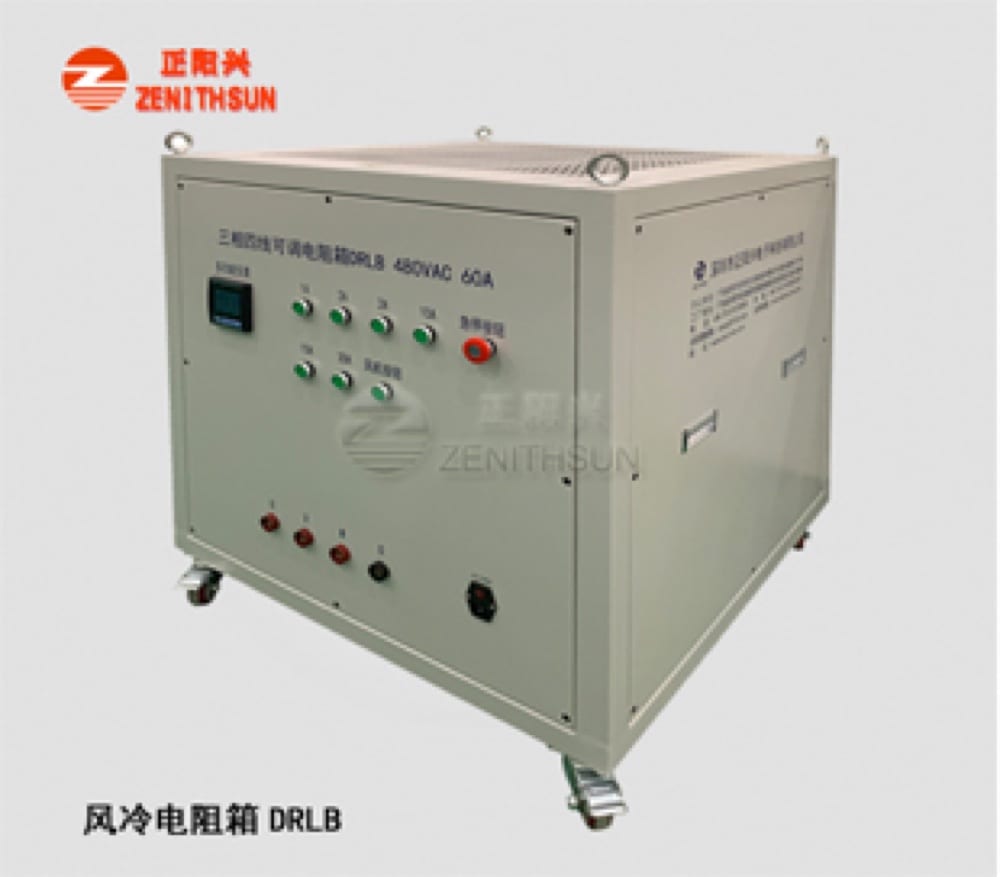

AC load banks for testing and maintenance of power sources: resistive DRLB 3 kW – 5 MW with 0.1–15,000 A, single- or three-phase, and intelligent RLC 3 kVA – 5 MVA for 110–690 V AC with resistive, resistive-inductive, resistive-capacitive or RLC loads. Load is applied in steps from the local panel or remotely — via RS232/RS485 from a PC or from a PLC remote control box. Meters display current, voltage, frequency, power and temperature. Fan or water cooling, protection class IP20–IP67.
- Power range
- DRLB: 3 kW – 5 MW; RLC: 3 kVA – 5 MVA
- Voltage
- single- or three-phase; RLC 110–690 V AC; high-voltage versions 6, 10, 35 kV
- Current range
- 0.1–15,000 A
- Load types
- R, RL, RC, RLC
- Control
- step switching from local panel; remote via RS232/RS485 from PC or PLC remote box
- Metering
- current, voltage, frequency, power, temperature
- Protection
- short circuit, over-current, over-voltage, over-temperature, fan failure, audible and visual alarm
- Cooling and enclosure
- fans or water; IP20–IP67 (standard IP20 indoor); ambient −10…+55 °C
DC Load Banks

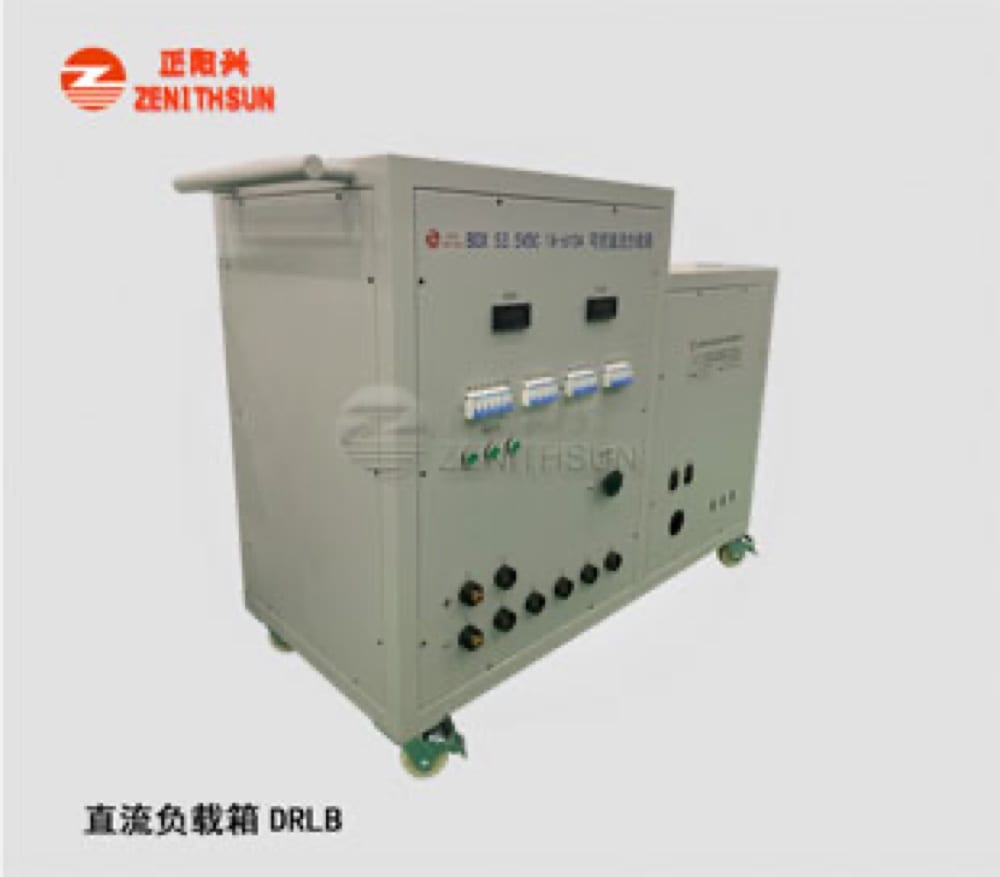

Resistive DC load banks DRLB for testing and maintenance of DC power sources, switchgear and equipment burn-in: 3 kW – 5 MW, 1 V – 10 kV DC, current 0.1–15,000 A. Built with high-power wirewound, aluminum housed, plate or stainless steel resistors; load is applied in steps with a fine adjustment handle. The panel carries ammeter, voltmeter, ohmmeter and temperature meter, with RS232/RS485 for PC control. Examples include 610 A / 53 V and 200 kW / 10 kV; high-voltage DRLB units for 1–150 kV are air- or transformer-oil-cooled.
- Power range
- 3 kW – 5 MW
- Voltage
- 1 V – 10 kV DC
- Current range
- 0.1–15,000 A
- High-voltage version
- 1–200 kW; 1–150 kV; 22 kΩ – 27 MΩ; air or oil cooling
- Control
- step switches, fine adjustment handle; RS232/RS485 for PC
- Metering
- current, voltage, resistance, temperature
- Protection
- short circuit, over-current, over-voltage, over-temperature, fan failure, audible and visual alarm
- Cooling and enclosure
- fans or water; IP20–IP67; ambient −10…+55 °C

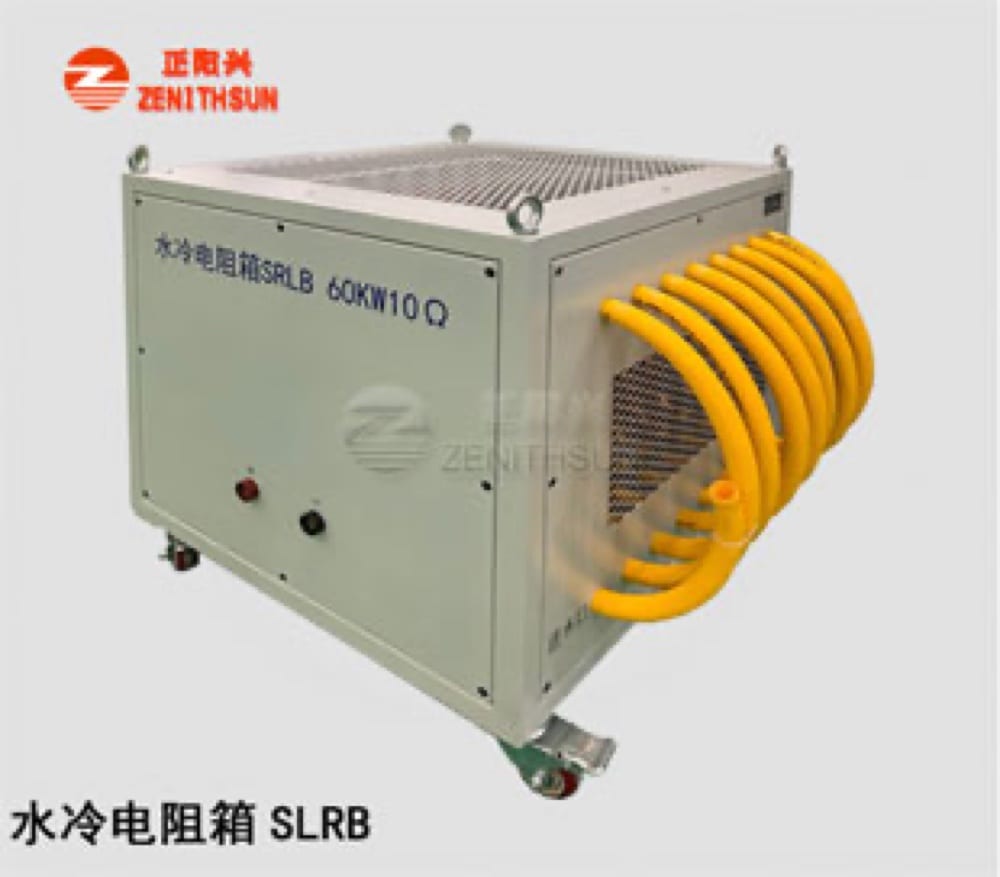

Water Cooled Load Banks
SLRB water-cooled load banks built on water-cooled resistors: 3 kW – 5 MW, 5–1,000 V AC or DC, 0.1–15,000 A. Cooled by flowing tap water, distilled water or other liquid — no deionized-water costs; for the same power the cabinet is lower than an air-cooled one: 50 kW — 700 × 650 × 800 mm versus 680 × 680 × 1,200 mm. Cooling system, pump, tank, cooling tower and piping available on request. RS232/RS485, short-circuit, overload and over-temperature protection. Examples include 400 kW / 1 kV, 770 kW in stainless steel and 96 kW / 400 V DC.
- Power range
- 3 kW – 5 MW
- Voltage
- 5–1,000 V AC/DC
- Current range
- 0.1–15,000 A
- Coolant
- tap or distilled water, other liquid; no deionization required
- Optional equipment
- cooling system, pump, tank, cooling tower, piping, cables
- Control and protection
- RS232/RS485 for PC; short circuit, over-current, over-voltage, over-temperature, alarm
- Dimensions (examples)
- 50 kW — 700 × 650 × 800 mm; 2 MW — 2,400 × 1,800 × 2,000 mm
Battery Short-Circuit Test Load Banks

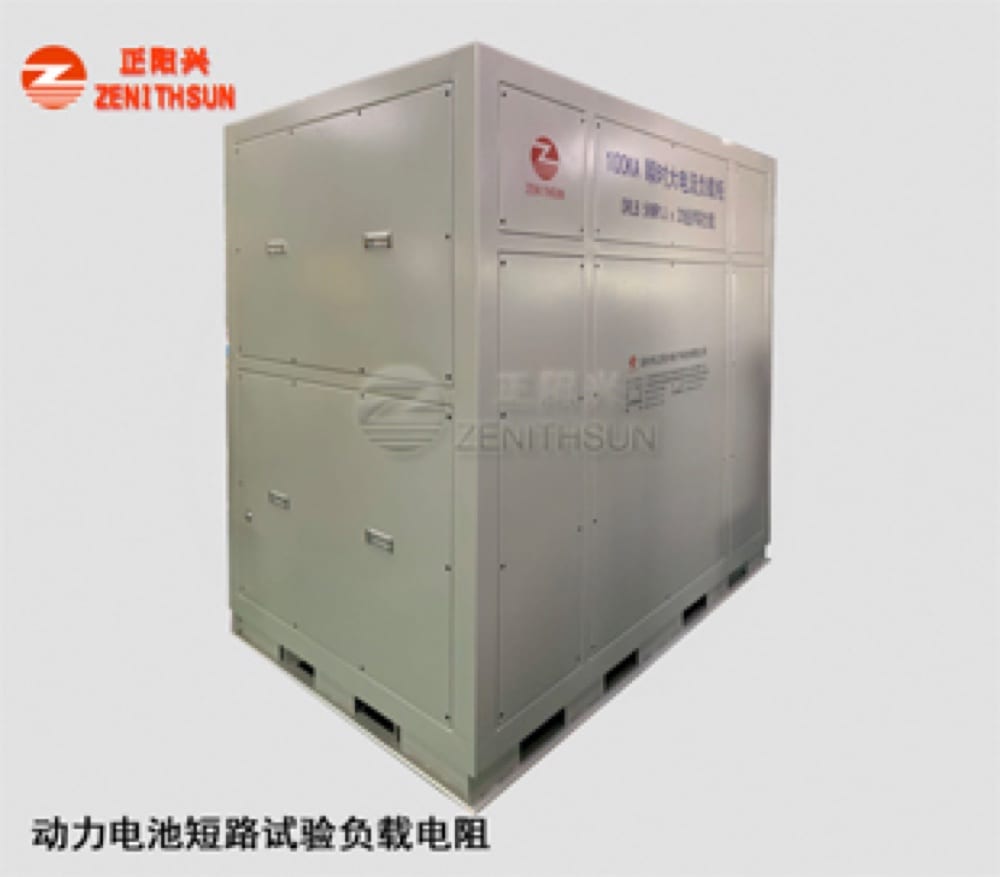

Low-resistance DRLB load banks for short-circuit testing of traction batteries — ZENITHSUN's flagship product, covered by an invention patent and utility model patents and recognized by TÜV, CATL and Gotion High-Tech. Steps of 1–200 mΩ, short-time current per step 1,000–16,000 A, test duration 5–300 s; two or more steps are usually combined. Power 1 kW – 5 MW, current 0.1 A – 50 kA, voltage 5–1,000 V; a 100 kA bank is also in the range. Knife switches, copper bar terminals, RS232/RS485, short-circuit, overload and over-temperature protection.
- Step resistance
- 1–200 mΩ
- Short-time current per step
- 1,000–16,000 A
- Test duration
- 5–300 s
- Current range
- 0.1 A – 50 kA (100 kA version available)
- Voltage
- 5–1,000 V
- Power range
- 1 kW – 5 MW
- Control
- knife switches and step switches; RS232/RS485 for PC
- Protection
- short circuit, over-current, over-voltage, over-temperature, fan failure, audible and visual alarm
