Manufacturer of lifting electromagnets, electro-permanent magnets, cable reels and rectifier control cabinets. Founded in early 1990s, exports to 30+ countries.
Special Drive Solutions (SDS)
DYC Electro-Permanent Magnetic Lifters
DYC electro-permanent magnetic lifters: the permanent magnets are switched by a current pulse, so the load stays held when power is lost — no battery backup unit is needed, and electricity is consumed only while magnetizing and demagnetizing. The magnetic circuit is matched to the load: square for blooms and beam blanks, multi-pole for coils and round billets, round for small plates and billets. Range DYC-3030…8282, DYC-350/600, DYC-12439…16039; lifting capacity 3,500–40,000 kg with adjustable holding force.
- Sizes
- DYC-3030 … DYC-8282 (square), DYC-350, DYC-600 (round), DYC-12439 … DYC-16039 (rectangular)
- Dimensions
- 300×300 – 820×820 mm; Ø350 and Ø600 mm; 1240–1600 × 390 mm
- Max. lifting capacity
- 3,500–40,000 kg (thick flat low-carbon steel slab)
- Own weight
- 60–2,500 kg
- Magnetic circuits
- square — blooms, beam blanks; multi-pole — coils, round billets; round — small plates and billets
- On power loss
- load held without a battery unit
- Force adjustment
- yes
- Capacity derating
- cast iron 65 %, high-carbon steel 75 %, medium-carbon steel 85 %; rough surface 65 %

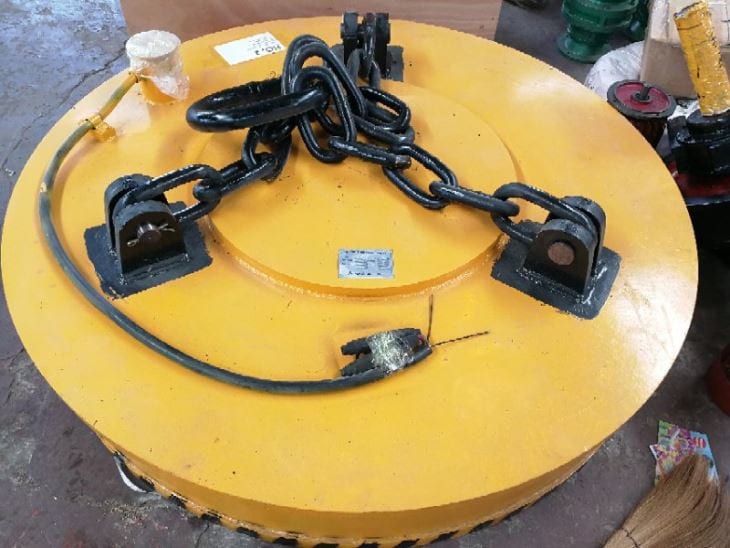

MW Series Lifting Electromagnet
XINRI lifting electromagnets for different loads. The core MW5 series is circular, Ø700–2400 mm, for scrap, pig iron and steel balls: 2,500–26,000 kg of steel balls, 380–4,800 kg of pig iron and 120–2,850 kg of scrap at 3.2–33.9 kW. Versions: normal (60 % duty cycle, DC 220 V), high-frequency (75 %), high-temperature (load up to 700 °C) and submersible; strong excitation at 290/220 V raises lifting capacity. MW61 is oval for loading scrap into railcars and ships, MW03 handles slabs and large ingots of 6–40 t, MW22/220/221/223 handle sections, blooms, I-beams and wire rod coils, MW84 and MW04 — plates and sheets.
- Sub-series
- MW5 (scrap, pig iron, balls), MW61 (oval), MW03 (slabs, ingots), MW22, MW220, MW221, MW223 (sections, blooms, I-beams, coils), MW84, MW04 (plates)
- MW5 diameter
- 700–2400 mm (MW5-70L … MW5-240L)
- MW5 lifting capacity
- steel balls 2,500–26,000 kg; pig iron 380–4,800 kg; scrap 120–2,850 kg (cold magnet)
- MW03 lifting capacity
- 6–40 t per magnet (slabs, large ingots), Ø700–1800 mm
- MW5 power
- 3.2–33.9 kW (60 % duty); 6.1–25.9 kW (75 % duty, MW5-110L … 240L)
- Duty cycle
- 60 % — normal and high-temperature; 75 % — high-frequency
- Supply
- DC 220 V; strong excitation 290/220 V; over-excitation 350/290/220 V (large magnets)
- Load temperature
- up to 700 °C (high-temperature version)
Conductor Rails & Cable Reels

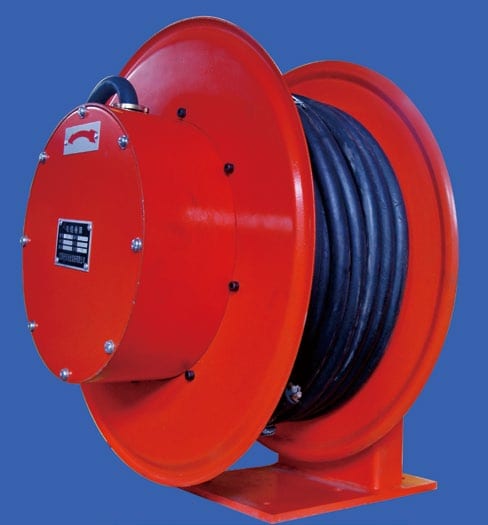

Cable Reeling Drum
XINRI cable reels supply power to cranes and other mobile machinery. Spring-driven reels with a flat spiral spring and slip-ring collector: DJ1 and JT1 up to 200 A, DJ2 up to 150 A, JT2 up to 50 A for travel up to 30 m, and the miniature DJ5 in a plastic housing up to 10 A and 10 m. Motor-driven reels for long travel and high currents: DJ1D with an oil-immersed friction drive (up to 400 A), DJ1C and DJ1Z with a hysteresis coupling (up to 800 A per ring, up to 10 kV), DJ1B(G) with a variable-frequency drive (0–40 m/min). Horizontal or vertical winding must be specified in the order.
- Drive type
- spring (DJ1, DJ2, JT1, JT2, DJ5); motor: oil-immersed friction drive (DJ1D), hysteresis coupling (DJ1C, DJ1Z), variable-frequency drive (DJ1B(G))
- Current, spring reels
- DJ1, JT1 up to 200 A; DJ2 up to 150 A; JT2 up to 50 A; DJ5 up to 10 A
- Current, motor reels
- DJ1D up to 400 A; DJ1C, DJ1Z up to 800 A per ring; DJ1B(G) 500–800 A (380 V), 200 A (6/10 kV)
- Voltage
- up to 10 kV (DJ1C, DJ1Z, DJ1B(G))
- Cable length, spring reels
- 10–100 m (JT2-10 … DJ1-100); travel JT2 up to 30 m, DJ5 up to 10 m
- DJ1D cable
- 4–70 mm², Ø21–51 mm, 4 cores; travel ±70…±150 m horizontal, 40–120 m vertical
- Winding speed
- DJ1D max. 40–60 m/min; DJ1B(G) 0–40 m/min
- Winding torque
- DJ1D up to 30…460 N·m by size; DJ1C 130–300 N·m per drive head, up to 4 heads

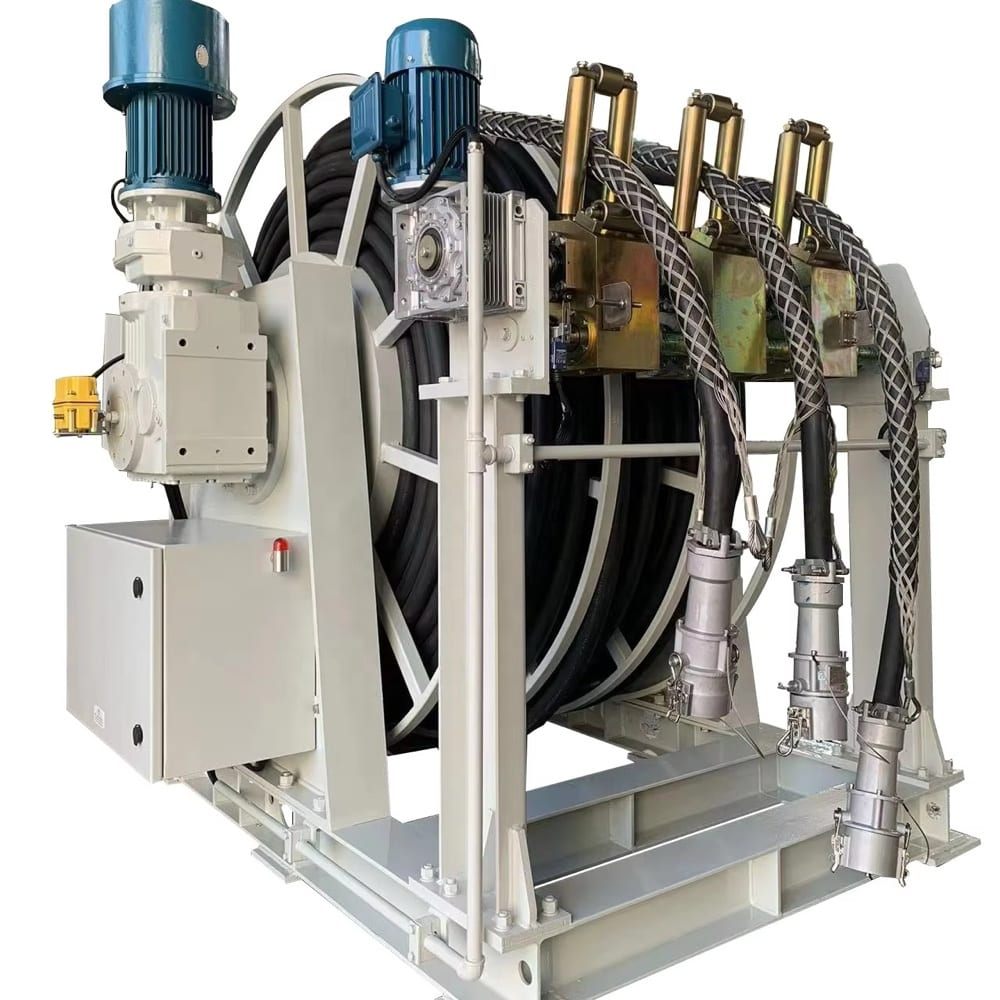

Shore Power Cable Reel
XINRI shore power drums (cable winches) connect a berthed vessel to the onshore grid: while moored and during cargo handling the ship shuts down its diesel generators, cutting port emissions. The motor-driven winch — drum, motor, reducer, base and control cabinet — pays out and retrieves the cable and stores it when no power is supplied. Mechanical stress in the cable is kept below a set value and cable terminations are relieved of load; on overstretch the shore connection circuit breaker trips quickly, with emergency stop and safety interlocking. High- and low-voltage versions are available.
- Type
- motor-driven cable winch
- Components
- drum, motor, reducer, base, control cabinet
- Voltage
- high- and low-voltage versions
- Cable protection
- tension kept below a set value; terminations relieved of mechanical stress
- Emergency functions
- fast trip of the shore breaker on cable overstretch, emergency stop
- Interlocking
- shore connection breaker cannot close and is tripped on alarm
- Example designation
- ADJD-125/1-100-35
Electronics

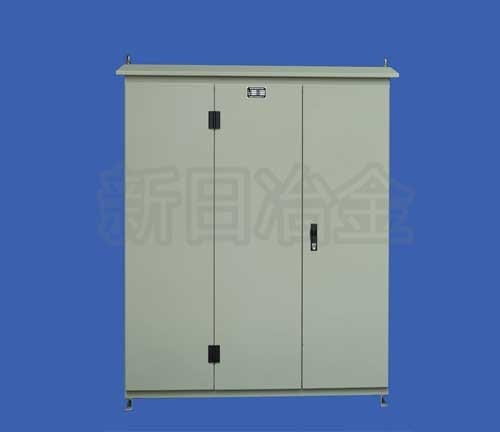

Rectifier Control Cabinets for Lifting Electromagnets
XINRI rectifier cabinets feed lifting electromagnets with direct current from a 3 × 380 V mains. DKX(P) supplies a constant DC 220 V at 30–200 A for MW5-90L…MW5-250L magnets, with short-circuit and overvoltage protection. DQ(K)X adds strong excitation: an elevated voltage for about 5 s at pick-up, then 220 V. DQ(K)XW is a contactless thyristor design for DC 290/220 V with no contactor arcing. DKX-B/BT and DKXBWT-P with a battery bank hold the load during a mains failure (DKXBWT-P for at least 15 min) and provide force adjustment, single-plate release and split control of magnet groups.
- Series
- DKX(P) — constant voltage; DQ(K)X — strong excitation; DQ(K)XW — contactless thyristor; DKX-B/BT, DKXBWT-P — load retention on power failure
- Supply
- 3-phase, 380 V
- Output voltage
- DC 220 V; strong excitation DC 290/220 V; adjustable 0–220 V (DKX-BT, DKXBWT-P)
- Rated output current
- 30–200 A (DKX(P), DQ(K)X, DQ(K)XW); 40–200 A (DKX-B/BT)
- Output power
- 10–40 kW (DKX-B/BT, DKXBWT-P)
- Retention on mains failure
- at least 15 min; 18 batteries, 38–200 Ah (DKXBWT-P)
- Matching electromagnets
- MW5-90L … MW5-250L, MW1-6 … MW1-45
- Functions
- strong excitation ≈5 s, force adjustment, single-plate release, split control of magnets, short-circuit and overvoltage protection
FAQ — XINRI
What equipment does SDS supply from XINRI?
SDS delivers the full XINRI product range including special drive solutions (sds), conductor rails & cable reels and electronics. Detailed series, sizes and technical specifications are available on this page; full PDF catalogues can be downloaded from the Catalogues section.
In which industries is XINRI equipment used?
XINRI equipment is applied in metallurgy, mining & mineral processing, crane manufacturing and port equipment and other industries. We select a specific model for your duty cycle, load profile, working environment and ambient conditions.
What is the warranty and lead time for XINRI?
Standard manufacturer warranty — 12 months from commissioning, no more than 18 months from shipment. Production lead time is 4–16 weeks depending on specification (the equipment is manufactured in China, Jiangsu Province, Jiangyin). Delivery to Russia is by road transport. Detailed terms are on the Terms of Cooperation page.
How to order XINRI equipment from SDS?
Send a technical request with operating parameters and requirements. Within one business day we prepare a technical-commercial proposal with firm pricing and delivery schedule. Default Incoterms — DDP (with EAEU certification and customs clearance included).
