Jiangsu Hengli Hydraulic Co., Ltd.
World's largest excavator hydraulic cylinder manufacturer (capacity 950,000 excavator cylinders a year). Listed company (SSE: 601100). Hydraulic cylinders for mobile machinery, industrial equipment, offshore platforms, TBMs, energy.
Hydraulics

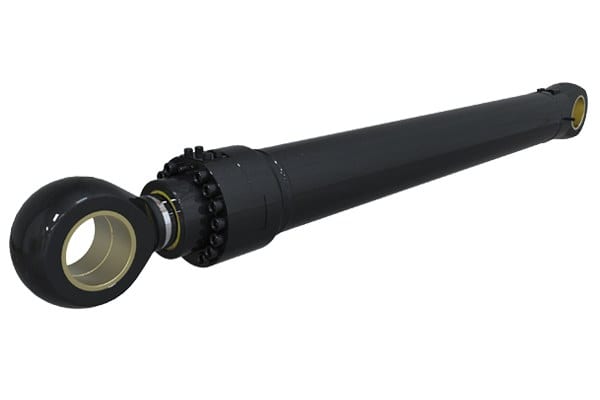

Mobile Machinery Cylinders
Hengli hydraulic cylinders for construction, lifting and mining machinery. The plant started series production of excavator cylinders in 2005; annual capacity is 950,000 excavator cylinders and 200,000 customised cylinders. For mini and small excavators up to 10 t the complete set is supplied, including boom swing, dozer blade and undercarriage extension cylinders; for 65–700 t machines — boom, stick, bucket and track tensioning cylinders. The range also covers mobile cranes, aerial work platforms, rotary drilling rigs up to 580 kN·m and mining dump trucks.
- Excavators
- mini and small up to 10 t; medium and large 65–700 t
- Excavator cylinders
- boom, stick, bucket, dozer blade, boom swing, blade angle, undercarriage extension, track tensioning
- Mobile cranes
- luffing, telescopic, outrigger and outrigger extension, suspension, counterweight, steering
- Aerial work platforms
- luffing, telescopic, outrigger, levelling, steering, rotary actuators
- Rotary drilling rigs
- up to 580 kN·m: mast luffing and correcting cylinders, crowd cylinders
- Mining dump trucks
- front and rear suspension, body lifting, steering; piston accumulators
- Production capacity
- 950,000 excavator and 200,000 customised cylinders per year

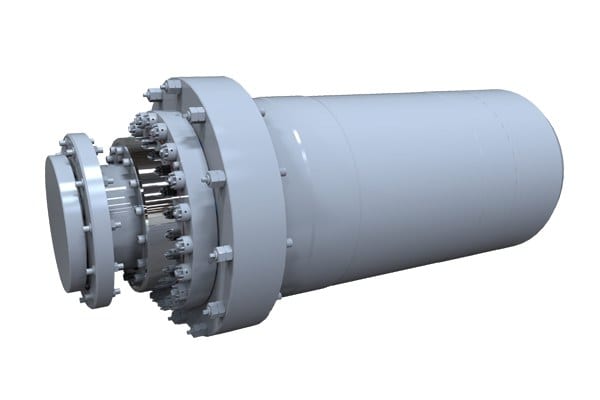

Industrial Engineering Cylinders
Hengli industrial cylinders for metallurgy and metal forming. For hydraulic presses Hengli supplies master, side and return cylinders, lateral anvil shift, moving table, clamping, levelling and centring cylinders; for an 8,000 t forging press — the master cylinder. For electric arc furnaces — tilting, roof lifting and roof swing cylinders with composite-plated rods and high-temperature seals. For aluminium billet casting Hengli built an inner-guided cylinder with a 14.3 m stroke, and for a stretch forming machine — a set of 16 cylinder types.
- Presses
- master, side, return cylinders; lateral anvil shift, moving table, clamping, levelling, tilt, cushion, centring, side shift cylinders
- Forging presses
- master cylinder for an 8,000 t forging press
- Electric arc furnaces
- tilting, roof lifting and swing, lifting, pressing, locking, cover cylinders; composite-plated rods, high-temperature seals
- Aluminium billet casting
- inner-guided anti-rotation cylinder: 14.3 m stroke, straightness 0.02 mm/m, full-stroke twist < 1 mm
- Stretch forming machines
- 16 cylinder types incl. 200/150 × 8,607 mm and 600/300 × 2,007 mm (bore/rod × stroke)
- Filter presses and extrusion presses
- copper-alloy plunger guides to carry side loads

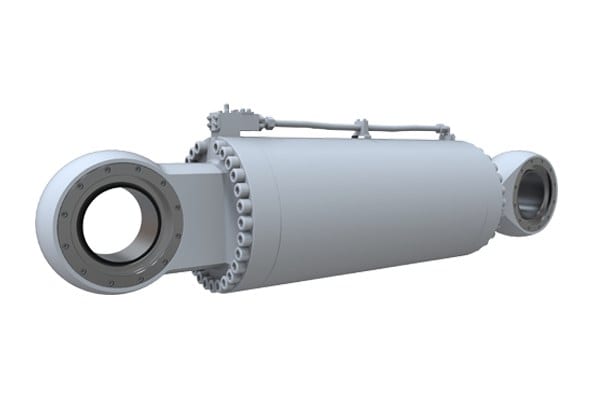

Offshore Cylinders
Hengli cylinders for offshore platforms, ships and port equipment: lifting and pin cylinders for jack-up platforms, wire-rope tensioner cylinders for drilling platforms, cylinders for offshore cranes, ro-ro ships, split barges, dredgers and pile driving barges, plus reach stackers and stacker-reclaimers. Rods get Ni-Cr coating, plasma or HVOF spraying, laser cladding, proprietary HengliExpoNite, or are made of stainless steel. For a pile barge Hengli built a 1.6 m bore luffing cylinder with a 21 m stroke and 385 t weight — per the manufacturer, the world's largest hydraulic cylinder.
- Offshore platforms
- jack-up — lifting and pin cylinders; drilling — wire-rope tensioner cylinders
- Offshore cranes
- main boom luffing, folding arm tilt, A-frame luffing; double-piston accumulators for heave-compensated cranes
- Ships and floating plant
- ro-ro (bow and stern doors, ramps, latches), split barges, dredgers, pile driving barges
- Port equipment
- reach stackers (telescopic, luffing, steering), empty container handlers, stacker-reclaimers
- Large cylinders
- 110 m class pile driving rig: cylinder 148 t, 3,080 t thrust; 1.6 m bore × 21 m stroke, 385 t
- Rod protection
- Ni-Cr, plasma and HVOF spraying, laser cladding, stainless steel, HengliExpoNite
- Anchor handling
- auxiliary chain-stopper cylinders: down to −10 °C, 30-year design life

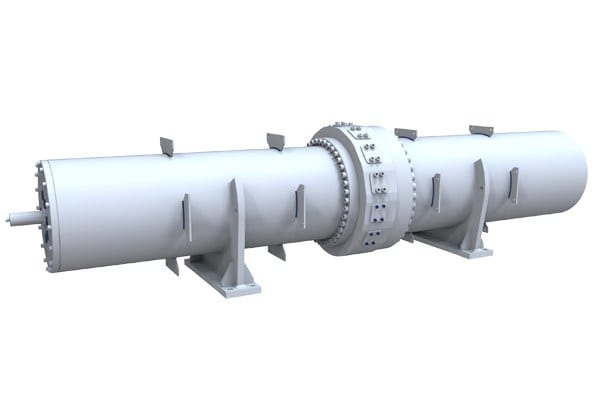

Energy Technology Cylinders
Hengli cylinders for energy and water engineering. For wind turbines rated up to 8 MW Hengli supplies blade pitch cylinders and accumulators; for wave and tidal plants — cylinders and hydraulic systems: in a 500 kW wave energy project the cylinders run at up to 20,000 cycles per day, with laser-clad and ceramic-sprayed rods. The range also includes heliostat drive cylinders for solar plants, platform and derrick lifting cylinders for drilling rigs, cylinder sets for hydraulic gate hoists and cylinders for corrosive desalination service.
- Wind power
- blade pitch cylinders and accumulators for turbines up to 8 MW
- Wave and tidal power
- cylinders and hydraulic systems; up to 20,000 cycles per day in a 500 kW project
- Solar power
- heliostat tracking drive cylinders, 2.2 kW power unit
- Oil and gas
- platform and derrick lifting cylinders for drilling rigs
- Water conservancy
- cylinder sets for hydraulic gate hoists
- Desalination
- cylinders for harsh corrosive service
- Rod protection
- laser cladding with ceramic spraying for the splash zone

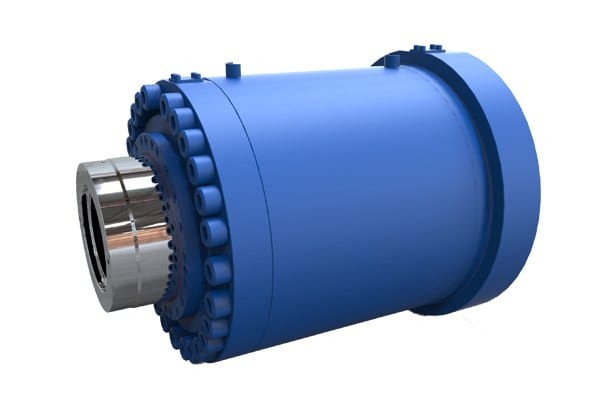

Tunnel Boring Machine Cylinders
Hengli cylinders for tunnel boring machines. For shield machines of 2.5–17.45 m diameter and larger Hengli supplies thrust, articulation, erector lifting, anti-torque and crusher cylinders; for open (gripper) TBMs — gripper shoe, thrust, torque and shield cylinders; for double shield TBMs — also main and auxiliary thrust cylinders. Hengli has made TBM cylinders since 2005: the complete set of high-pressure cylinders on the Bertha shield in Seattle came from Hengli and showed no corrosion or seal ageing after two years underground.
- Shield TBMs
- shield diameter 2.5–17.45 m and larger
- Shield machine cylinders
- thrust, articulation, erector lifting, anti-torque, crusher
- Open (gripper) TBMs
- gripper shoe, thrust, torque, shield cylinders
- Double shield TBMs
- gripper shoe, main and auxiliary thrust, torque cylinders
- Duty
- high cycle frequency, heavy loads, vibration, contamination
- Hengli hydraulics for shields
- V32G, V40G, HP3V, HP6V pumps; M60V motors; HVSM25 valves

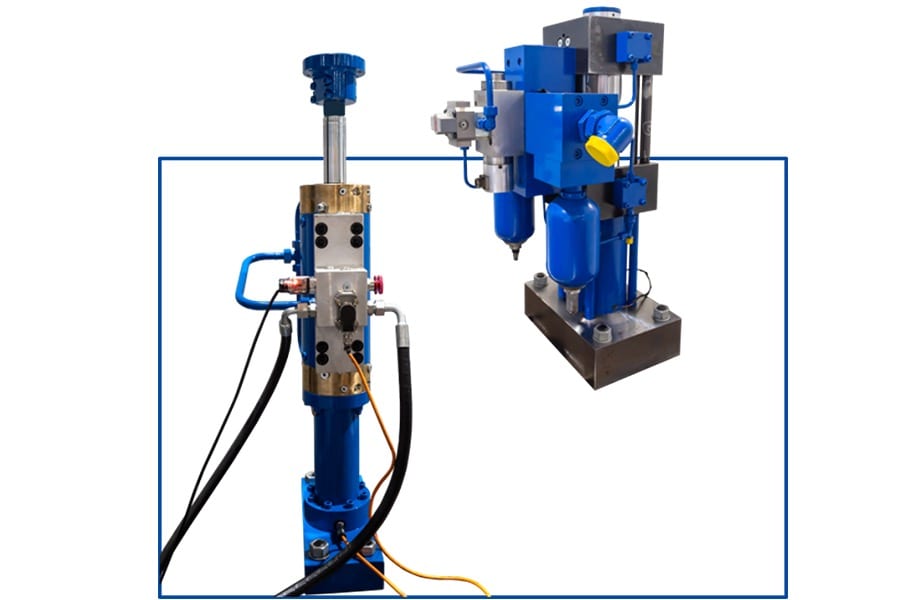

Servo Hydraulic Cylinders
Hengli servo hydraulic cylinders in three sealing designs: HLSL — low-friction seals and a magnetostrictive position sensor, up to 15 Hz, stroke up to 5,000 mm; HLSG — throttle gap seal with pressure-free contact seals, up to 400 Hz; HLSS — double-rod with hydrostatic rod support, up to 400 Hz and up to 1,568 kN at 32 MPa. Working pressure for all series is up to 32 MPa, speed up to 4 m/s. Hengli also supplies complete servo-hydraulic systems: power unit, servo valves, controller, sensors and software for multi-channel test rigs.
- Series
- HLSL — low friction seal; HLSG — throttle gap seal; HLSS — hydrostatic support
- Working pressure
- up to 32 MPa
- Piston / rod diameter
- HLSL, HLSG: 32–200 / 14–140 mm; HLSS: 28–320 / 25–200 mm
- Stroke
- HLSL, HLSG: up to 5,000 mm; HLSS: 50–400 mm
- Frequency
- HLSL: 0–15 Hz; HLSG, HLSS: up to 400 Hz
- Speed
- ≤ 4 m/s
- HLSS load
- 2.6–1,029 kN at 21 MPa; 4–1,568 kN at 32 MPa
- System
- power unit, servo valve, controller, sensors, software; min. friction 0.01 MPa

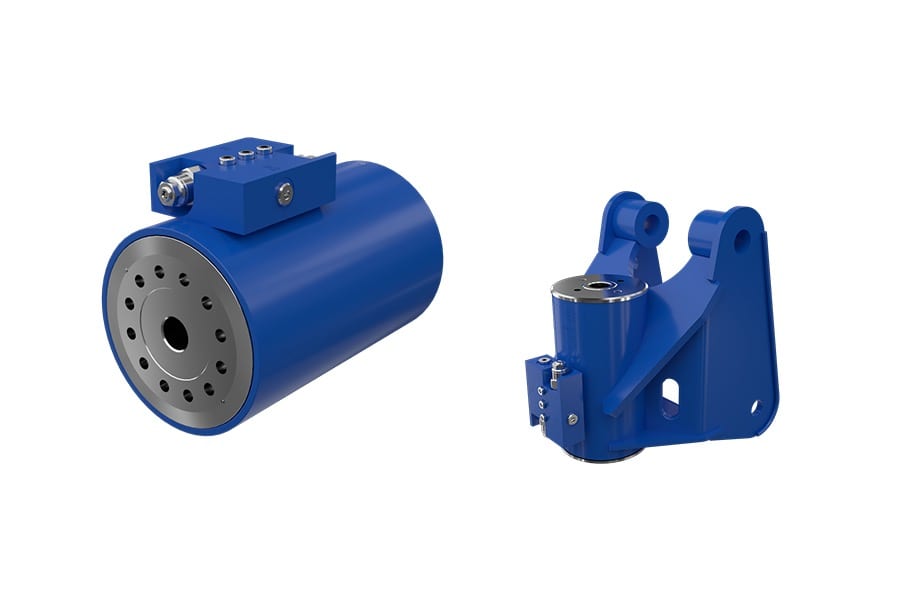

Spiral Rotary Actuators
Hengli hydraulic spiral rotary actuators: six series (HBL, HBM, HBH, HBT, HBK, HBP) with more than 100 specifications. Linear piston motion is converted into rotation of the output shaft by two helical spline pairs: fixed nut — hollow screw — output screw. Output torque is 200–76,000 N·m at 21 MPa, holding torque is two times the output torque or more, torque and speed are equal in both directions; built-in axial and radial bearings carry cantilever and straddle loads. An optional counterbalance valve prevents uncontrolled rotation on line failure and overload.
- Series
- HBL, HBM, HBH, HBT, HBK, HBP — 100+ specifications
- Output torque (21 MPa)
- 200–76,000 N·m
- Holding torque
- 2× output torque or more; up to 111,800 N·m (HBP 465)
- Design pressure
- 30–210 bar
- Rotation angle
- 0–360° (HBL, HBH, HBK, HBP); HBM — 180°; HBT — 200° or 220°
- Working temperature
- −30…+90 °C
- Mounting
- flange (HBL, HBH, HBK), tripod (HBM, HBH, HBT, HBP); HBK output — flat key or spline
- Options
- integrated counterbalance valve, special seals

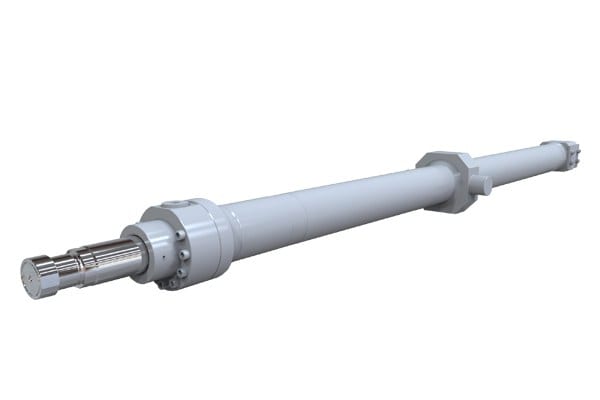

Rubber Injection & Cement Cylinders
Hengli cylinders for plastics and rubber machinery and cement plants. For injection moulding machines the full set is available: injection, carriage (nozzle), ejection, mould opening/closing, clamping, actuating and brake cylinders; speed up to 1,000 mm/s, low-friction wear-resistant seals and guide rings for long repetitive duty. For tyre vulcanizing presses — tilting, segmented mould, pressing, upper and lower ring and tyre unloading cylinders. For cement production — roller press, vertical mill and grate cooler cylinders.
- Injection moulding machines
- injection, carriage, ejection, mould opening/closing and clamping, actuating, auxiliary opening, brake cylinders
- Speed
- up to 1,000 mm/s (IMM cylinders)
- Seals
- low-friction wear-resistant seals and guide rings
- Tyre vulcanizing presses
- tilting, segmented mould, pressing, mould opening/closing, upper and lower ring, tyre unloading
- Cement equipment
- roller press, vertical mill and grate cooler cylinders
Marine Solutions
Offshore Cylinders
Hengli cylinders for offshore platforms, ships and port equipment: lifting and pin cylinders for jack-up platforms, wire-rope tensioner cylinders for drilling platforms, cylinders for offshore cranes, ro-ro ships, split barges, dredgers and pile driving barges, plus reach stackers and stacker-reclaimers. Rods get Ni-Cr coating, plasma or HVOF spraying, laser cladding, proprietary HengliExpoNite, or are made of stainless steel. For a pile barge Hengli built a 1.6 m bore luffing cylinder with a 21 m stroke and 385 t weight — per the manufacturer, the world's largest hydraulic cylinder.
- Offshore platforms
- jack-up — lifting and pin cylinders; drilling — wire-rope tensioner cylinders
- Offshore cranes
- main boom luffing, folding arm tilt, A-frame luffing; double-piston accumulators for heave-compensated cranes
- Ships and floating plant
- ro-ro (bow and stern doors, ramps, latches), split barges, dredgers, pile driving barges
- Port equipment
- reach stackers (telescopic, luffing, steering), empty container handlers, stacker-reclaimers
- Large cylinders
- 110 m class pile driving rig: cylinder 148 t, 3,080 t thrust; 1.6 m bore × 21 m stroke, 385 t
- Rod protection
- Ni-Cr, plasma and HVOF spraying, laser cladding, stainless steel, HengliExpoNite
- Anchor handling
- auxiliary chain-stopper cylinders: down to −10 °C, 30-year design life
