Incremental Rotary Encoders

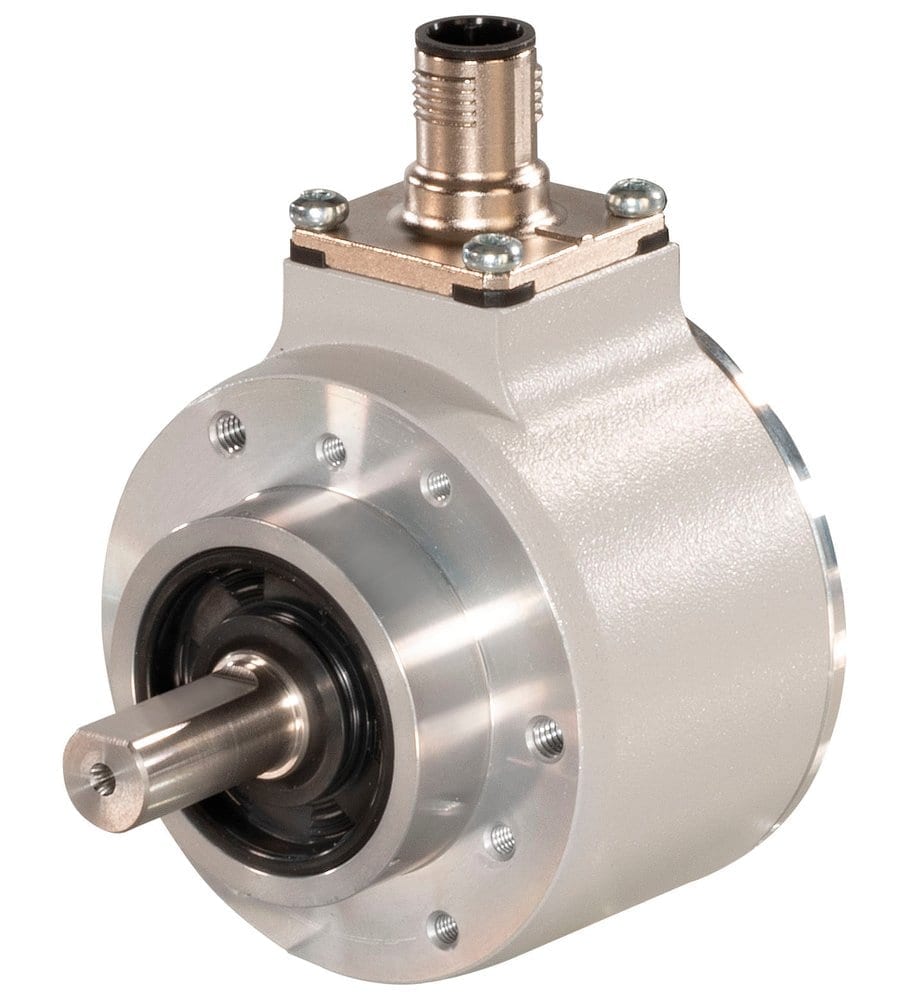

ENI58IL are Pepperl+Fuchs Industrial Line incremental rotary encoders in a Ø 58 mm housing with BlueBeam optical sampling. Four mechanical versions: ENI58IL-S (solid shaft, clamping or servo flange), ENI58IL-S**Q (square flange), ENI58IL-H (6–15 mm hollow shaft) and ENI58IL-R (8–15 mm recessed hollow shaft). Resolution 25–5000 pulses per revolution, universal push-pull/RS422 output driver with 4.75–30 V DC supply, output frequency up to 400 kHz, linearity error ±0.025°. Up to 12000 rpm, IP65/IP67, −40…+85 °C, 300 g shock and 30 g vibration resistance.
- Versions
- ENI58IL-S* — solid shaft, clamping or servo flange; ENI58IL-S**Q* — solid shaft, square flange; ENI58IL-H* — hollow shaft; ENI58IL-R — recessed hollow shaft; Ø 58 mm housing
- Resolution
- 25–5000 pulses/rev (standard range incl. 360, 1000, 1024, 2048, 2500, 4096, 5000); ENI58IL-S**Q — 360, 1000, 1500
- Output signals
- push-pull (HTL) or RS422 (TTL): universal output driver UD1 (output level depends on supply voltage) or RS422 (UD2); channels A, B, Z and inverted; up to 400 kHz; up to 40 mA per channel, short-circuit protected
- Supply voltage
- 4.75–30 V DC
- Shaft
- solid 6 × 10, 10 × 20, 12 × 20 mm, 1/4″, 3/8″; hollow (H) 6–15 mm, 1/4″–1/2″; recessed hollow (R) 8–15 mm, 1/4″–1/2″
- Max. speed
- ENI58IL-S 12000 rpm (IP65) / 6000 rpm (IP67); ENI58IL-R 8000 / 6000 rpm; ENI58IL-H 6000 / 3000 rpm
- Protection and ambient
- IP65 or IP67; −40…+85 °C (cable, fixed installation); shock 300 g, vibration 30 g (10–2000 Hz); linearity error ±0.025°
- Connection
- cable 1–10 m, M12 5-pin and 8-pin, M23 12-pin, MIL 7-pin and 10-pin
Industrial RFID Systems
Pepperl+Fuchs HF RFID system at 13.56 MHz to ISO/IEC 15693: IQH1 read/write heads and IQC tags work with IDENTControl evaluation units that pass data to the PLC via TCP/IP, Modbus TCP, EtherNet/IP or PROFINET IO. The IQH1-FP-V1 head reads and writes at up to 130 mm; the flat IQH1-F61-V1 can be mounted on metal and works up to 55 mm. IQC33 tags with FRAM memory allow an unlimited number of write cycles.
- Frequency and standard
- 13.56 MHz (HF); ISO/IEC 15693, ISO/IEC 18000-3
- System components
- IQH1 read/write heads (IQH1-FP-V1, IQH1-F61-V1, IQH1-18GM-V1); IQC tags (IQC21, IQC33); IDENTControl evaluation units
- Read/write distance
- up to 130 mm (IQH1-FP-V1); up to 55 mm (IQH1-F61-V1)
- Data transfer
- 26 kbit/s (head to tag); IDENTControl IC-KP2: TCP/IP, Modbus TCP, EtherNet/IP, PROFINET IO, 10/100 Mbit/s
- Protection and temperature
- heads IP67, M12 × 1 connector, −25…+70 °C; IQC33-ST22 tag IP68, 16 kbit FRAM, −20…+85 °C
Inductive Proximity Sensors

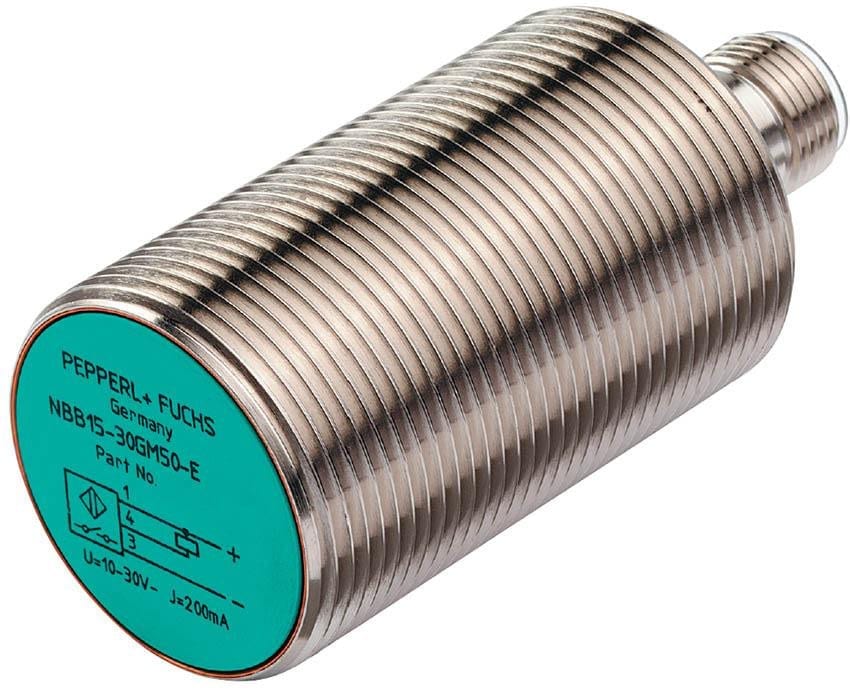

Pepperl+Fuchs inductive proximity sensors detect metal objects without contact at distances of up to 100 mm. NBB denotes flush mounting and NBN non-flush mounting; the NJ series includes PNP-output versions and NAMUR sensors for hazardous areas (ATEX, IECEx, up to SIL 2). M8–M30 threaded housings in stainless steel or brass, protection up to IP69, switching frequency up to 3000 Hz.
- Rated operating distance
- 2 mm (NJ2-12GM40-E2, M12, flush); 8 mm (NBB8-18GM50-E2-V1, M18, flush); 15 mm (NJ15-30GM-N, M30, non-flush); up to 100 mm in the range
- Output
- PNP, NO, 3-wire (E2); NAMUR, 2-wire to EN 60947-5-6 (N)
- Supply voltage
- 10–60 V DC (NJ2-12GM40-E2); 6–36 V DC (NBB8-18GM50-E2-V1); NAMUR 8.2 V
- Switching frequency
- up to 3000 Hz (NJ2-12GM40-E2); 1350 Hz (NBB8-18GM50-E2-V1); 100 Hz (NJ15-30GM-N)
- Protection and approvals
- IP67; NBB8-18GM50-E2-V1 IP65…IP69, −40…+85 °C; NJ15-30GM-N ATEX, IECEx, SIL 2
Photoelectric Sensors

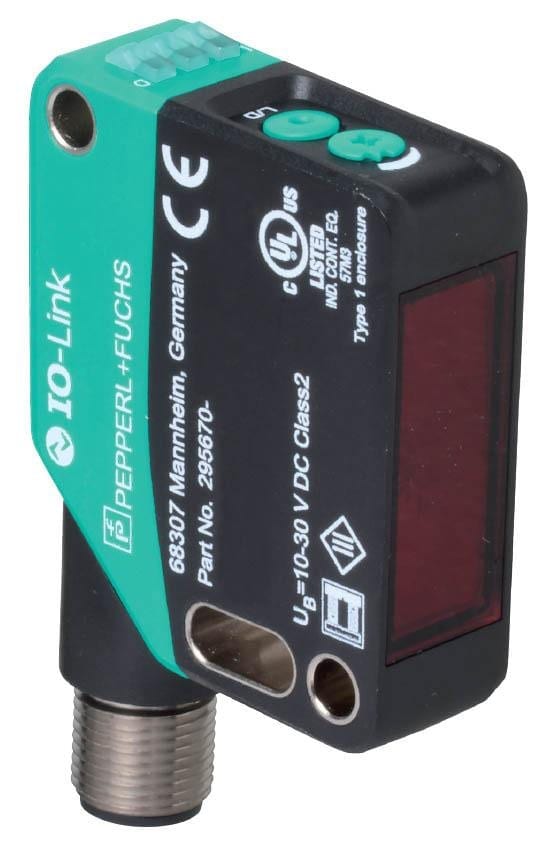

R10x and R20x are a Pepperl+Fuchs photoelectric sensor platform in standardized housings: the compact R100, R101 and R103 for short ranges and the R200 and R201 for longer ranges. The same housing offers thru-beam, retroreflective and diffuse sensors, Multipixel background suppression and Pulse Ranging distance sensors: the R200 measures up to 10 m on a white object and up to 60 m on a reflector. DuraBeam laser, IO-Link in every model.
- Series
- R100, R101, R103 — compact, for short ranges; R200, R201 — medium-sized, for longer ranges
- Sensing modes
- thru-beam, retroreflective, diffuse, background suppression (Multipixel Technology), distance measurement (Pulse Ranging Technology)
- Range (R200, PRT)
- up to 10 m on a white object; up to 60 m with a reflector
- Light source
- LED or eye-safe DuraBeam laser (laser versions up to +60 °C)
- Interface and housing
- IO-Link in every model (Smart Sensor Profile 1.1.3); R200 15 × 41.7 × 50.6 mm, rotatable connectors on R20x
Ultrasonic Sensors
Pepperl+Fuchs UB and UC series ultrasonic sensors detect objects and measure distance regardless of surface colour, transparency or gloss. The range in cylindrical M18 and M30 housings covers sensing ranges from 30–500 mm (UB500-18GM75) to 350–6000 mm (UC6000-30GM). Outputs: 4–20 mA analogue, programmable PNP and IO-Link, 10–30 V DC supply; temperature compensation and synchronization of up to five sensors.
- Sensing range
- 30–500 mm (UB500-18GM75); 80–2000 mm (UC2000-30GM); 350–6000 mm (UC6000-30GM)
- Outputs
- 4–20 mA analogue (UB500-18GM75-I); 2 programmable PNP outputs (UC2000-30GM-E6R2); IO-Link + analogue and switching output (UC6000-30GM-IUEP-IO)
- Supply voltage
- 10–30 V DC
- Transducer frequency
- approx. 380 kHz (UB500); approx. 180 kHz (UC2000); approx. 65 kHz (UC6000)
- Design
- cylindrical M18 and M30 housings, M12 connector; UB500-18GM75 nickel-plated brass, IP67, −25…+70 °C; synchronization of up to 5 sensors
Absolute Rotary Encoders

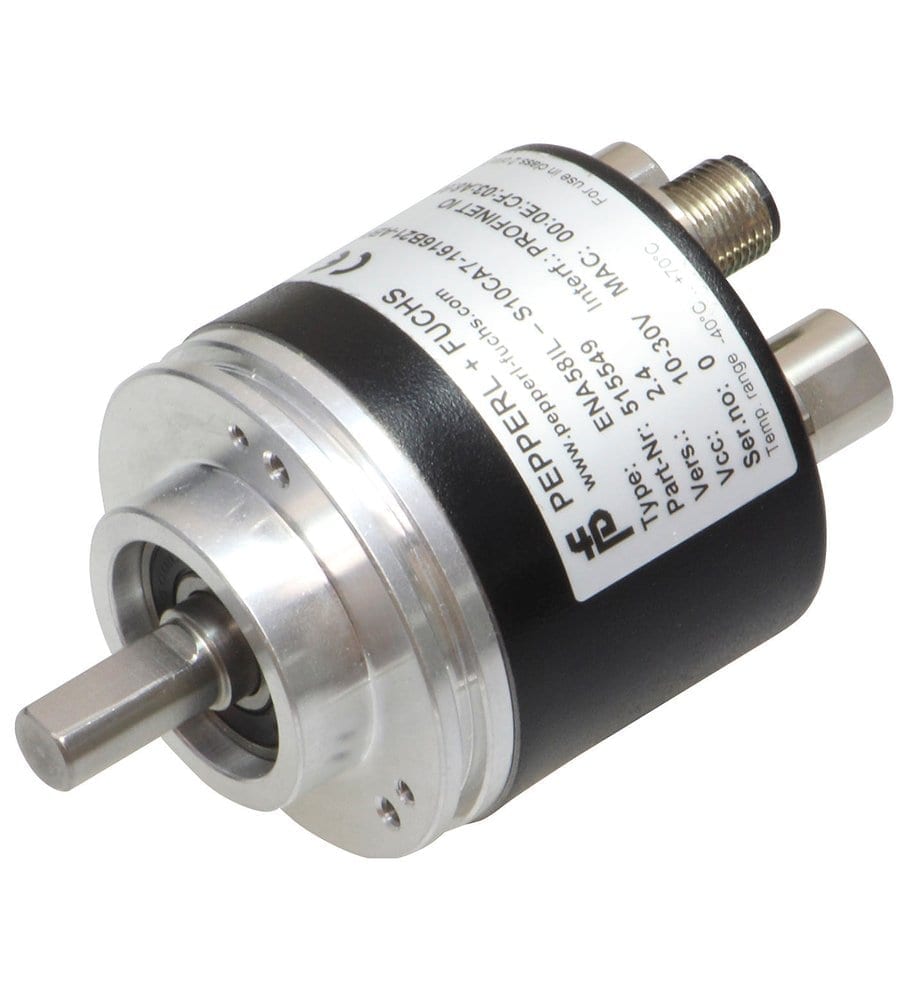

ENA58IL are Pepperl+Fuchs Industrial Line absolute rotary encoders in a Ø 58 mm housing with non-contact magnetic sampling: a Hall sensor measures the angle and a Wiegand sensor counts revolutions without a mechanical gear and without a battery. Linearity error ≤ ±0.1°, singleturn resolution up to 16 bits, overall resolution up to 32 bits (SSI), 31 bits (CANopen, SAE J1939, IO-Link) and 30 bits (PROFIBUS DP, PROFINET IO, EtherCAT). Versions: ENA58IL-S (6 or 10 mm solid shaft, clamping or servo flange) and ENA58IL-R (6–15 mm recessed hollow shaft). Up to 12000 rpm, IP65/IP67, −40…+85 °C.
- Versions
- ENA58IL-S*** — Ø 6 or 10 mm solid shaft, clamping or servo flange; ENA58IL-R*** — Ø 6, 10, 12, 14, 15 mm recessed hollow shaft, dual spring plate
- Resolution
- singleturn up to 16 bits (65536 steps); multiturn up to 16 bits (SSI), 15 bits (CANopen, J1939, IO-Link), 14 bits (PROFIBUS, PROFINET, EtherCAT); overall up to 32 / 31 / 30 bits
- Interfaces
- SSI (Gray or binary code, 0.1–2 Mbit/s, optional incremental track 1024 / 2048 / 4096 pulses); CANopen (DSP 406, up to 1 Mbit/s); SAE J1939; IO-Link 1.1 (COM3, 230.4 kbit/s); PROFIBUS DP (DPV0/DPV1/DPV2, up to 12 Mbit/s); PROFINET IO (Encoder Profile 4.2, IRT, cycle from 250 µs); EtherCAT (CoE, DS-406 profile)
- Accuracy
- linearity error ≤ ±0.1°; SSI cycle time < 100 µs
- Supply voltage
- 4.5–30 V DC (SSI, SSI + RS422); 10–30 V DC (SSI + push-pull); 9–30 V DC (CANopen, J1939); 10–30 V DC (PROFIBUS, PROFINET, EtherCAT); 18–30 V DC (IO-Link)
- Max. speed
- 12000 rpm; PROFIBUS and PROFINET in IP66/IP67 version 3000 rpm
- Protection and temperature
- IP65 or IP67 (IO-Link, PROFINET, EtherCAT — also IP66; PROFIBUS: IP54 with axial connector, IP66/IP67 with connection cover and shaft seal); −40…+85 °C (connector), −30…+70 °C (cable, fixed installation)
- Mechanics and connection
- shaft load 40 N axial, 110 N radial; shock up to 200 g, vibration up to 20 g; cable, M12, M23 12-pin (SSI); 2 × M12 D-coded + M12 supply (PROFINET, EtherCAT)
